Topological semimetal with wanniertoos and Quantum Espresso

[Mostafa Ragragui]

Hello everyone and all.
I would first like to thank you for creating this website to share information about the wanniertools package and science in general. I am average working with wanniertools but I have not seen good surface states yet, I do not know why?
May be because i work with Quantum Espresso which is different from VASP?
The example I’m currently dealing with: is a topological semimetal (LaBi) and that’s what I found at (001) surface , it’s totally different from literature?
please help me find a solution, I make the maximum effort, I need to resolve this results?

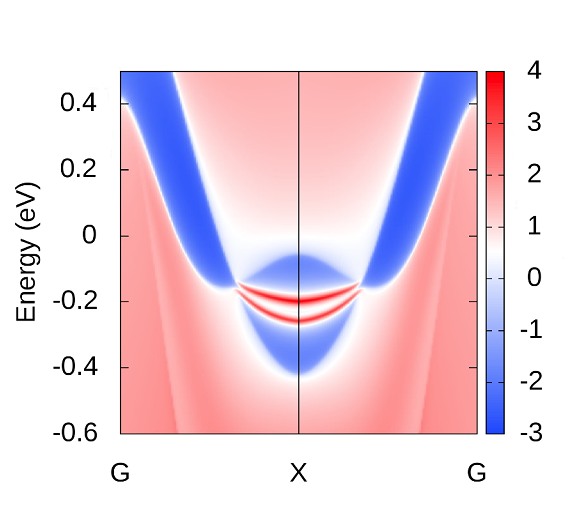

suraface states of topological semimetal LaBi

best regards

• This topic was modified 6 years, 2 months ago by Mostafa Ragragui.

[Brook]

1. Did you check with the topological number? If the topological number is not trivial, then the surface states must be nontrivial.
2. If the topological number is non-trivial, then please increase NP from 1 to 6 until the surface states spectrum don’t change any more.
